Projects

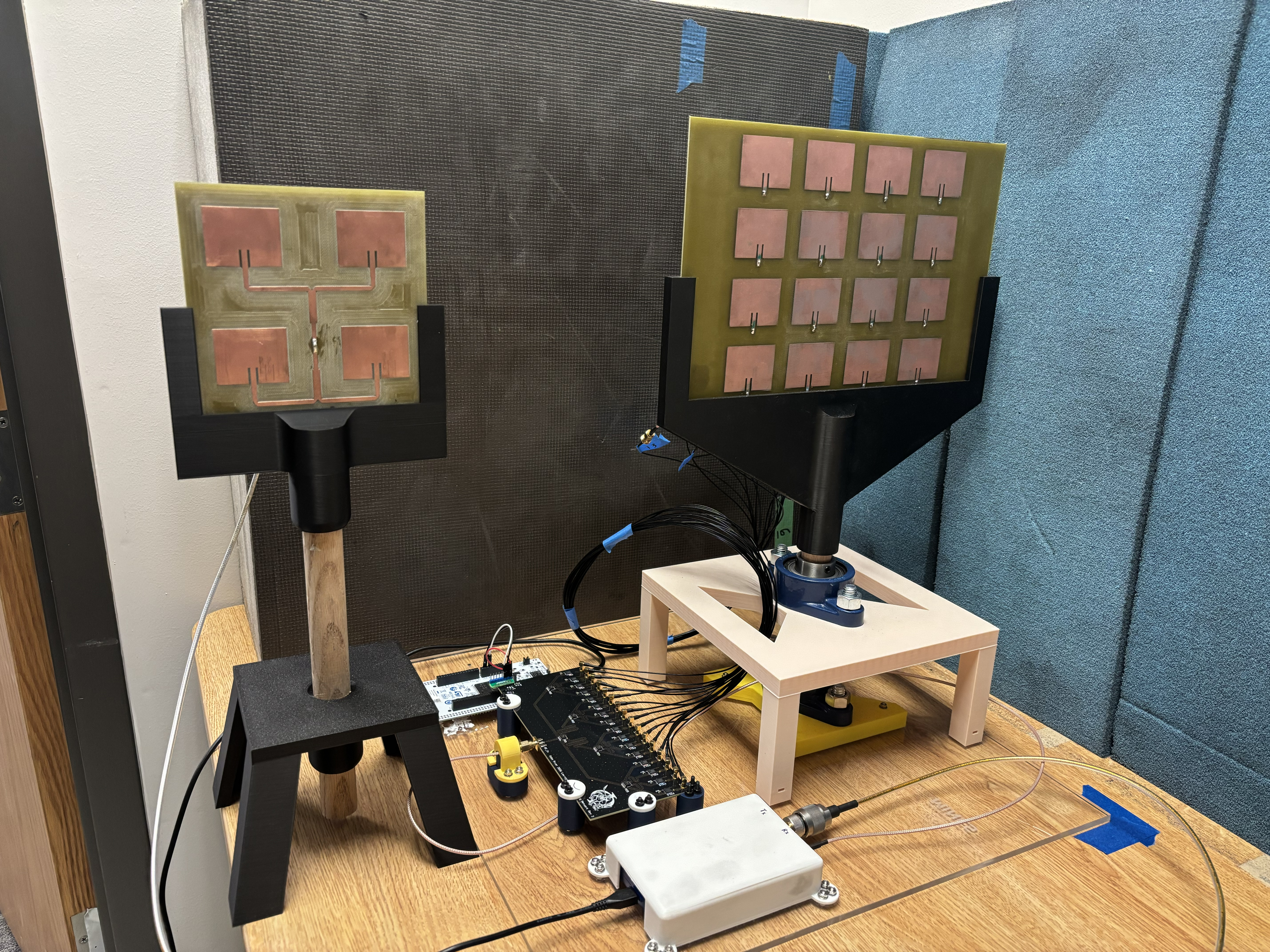

Custom Phased Array for Scattering Analysis
A custom printed circuit board utilizes 5 4:1 Wilkinson power dividers to split 1 input channel into 16 equal amplitude output channels. Each output channel has a digital phase shifter (PE44820) controlled by an STM microcontroller. The software defined radio connects to the phase shifting network and an external probe antenna to probe scattered power similar to monostatic radar.
Read More

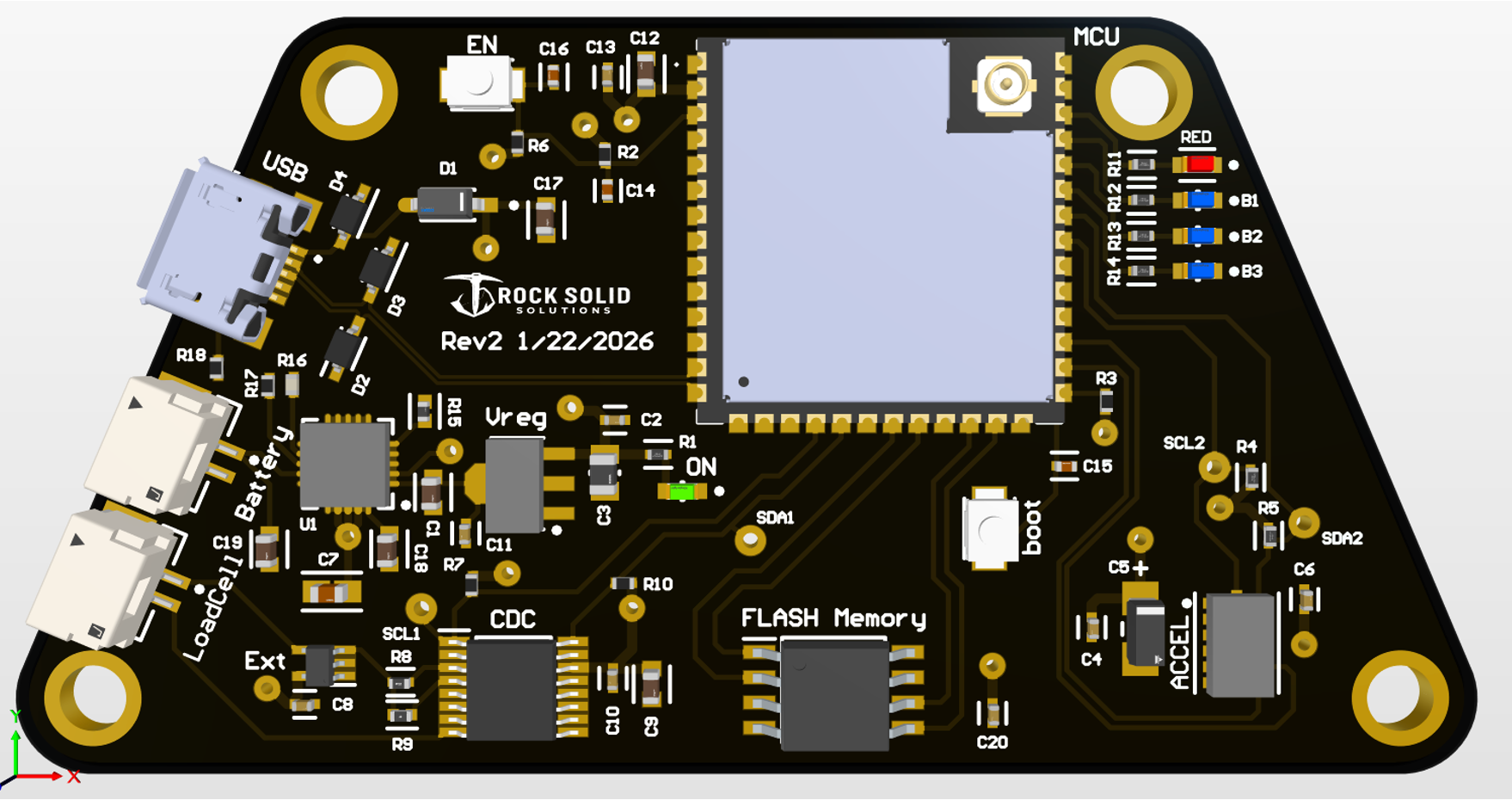

Smart Pick for Rock Cutting
An intelligent sensing system to monitor forces and vibrations on a rock cutting pick used in mining operations. The system is useful in identifying what rock is being cut and when the pick is wearing down.Our approach enables preventative pick replacement, reducing the risk of cascading failures and costly shutdowns. Additionally, real-time rock characterization helps operators avoid cutting non-profitable or highly abrasive materials—extending tool life and preventing contamination that can lead to downstream processing costs.
Read More

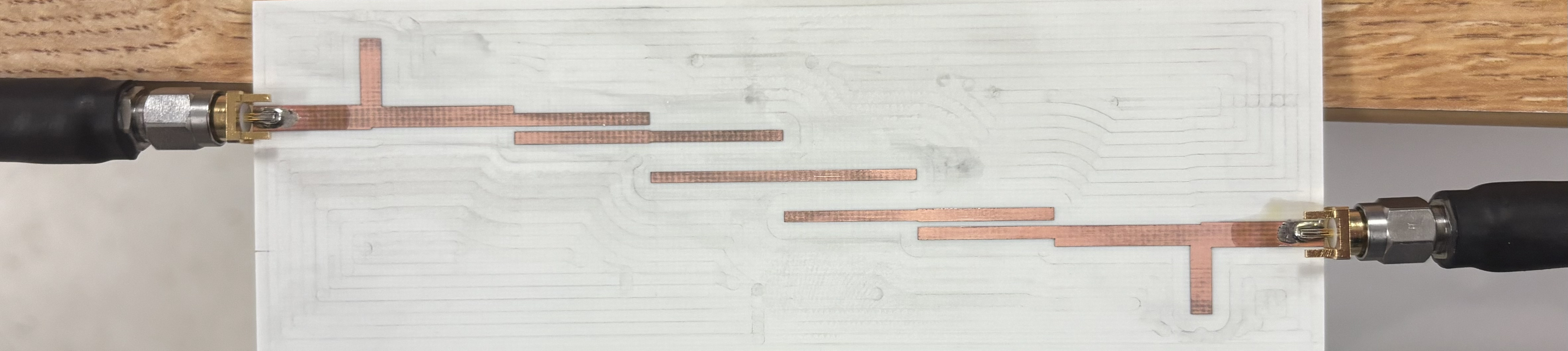

Coupled Line Bandpass Filter with 2nd Harmonic Suppression
For the final project in passive microwave devices, as a part of a theoretical coherent radar system a coupled line bandpass filter was designed to operate between 2401 MHz − 2495 MHz with second harmonic suppression.
Read More

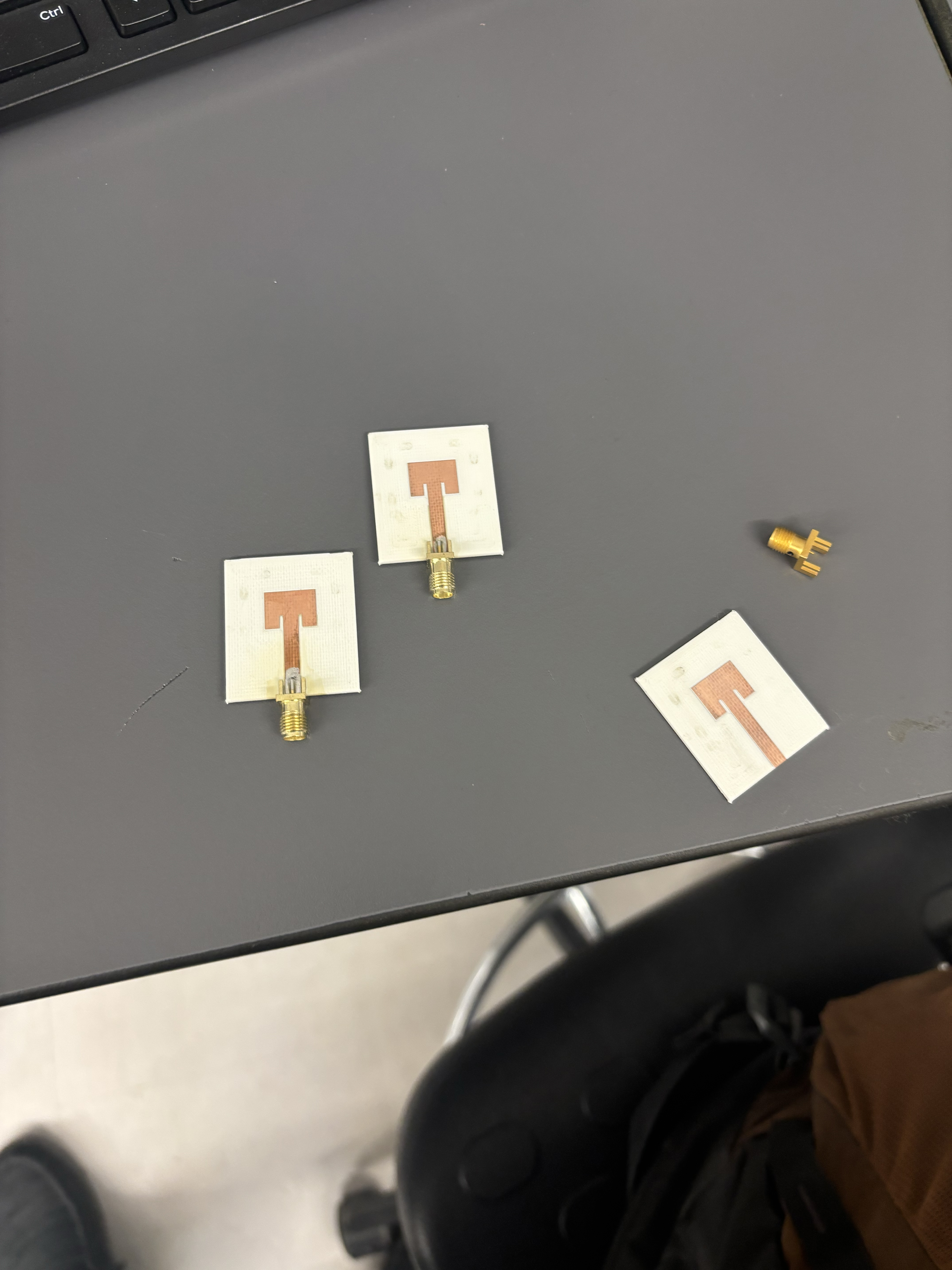

X-Band Microstrip Patch Antennas
Patch antennas were designed for 8.5 GHz using a finite difference time domain full-wave EM solver called CEMS, the patches were manufactured and the resonant frequency was confirmed with good agreement to simulation using a vector network analyzer.
Read More

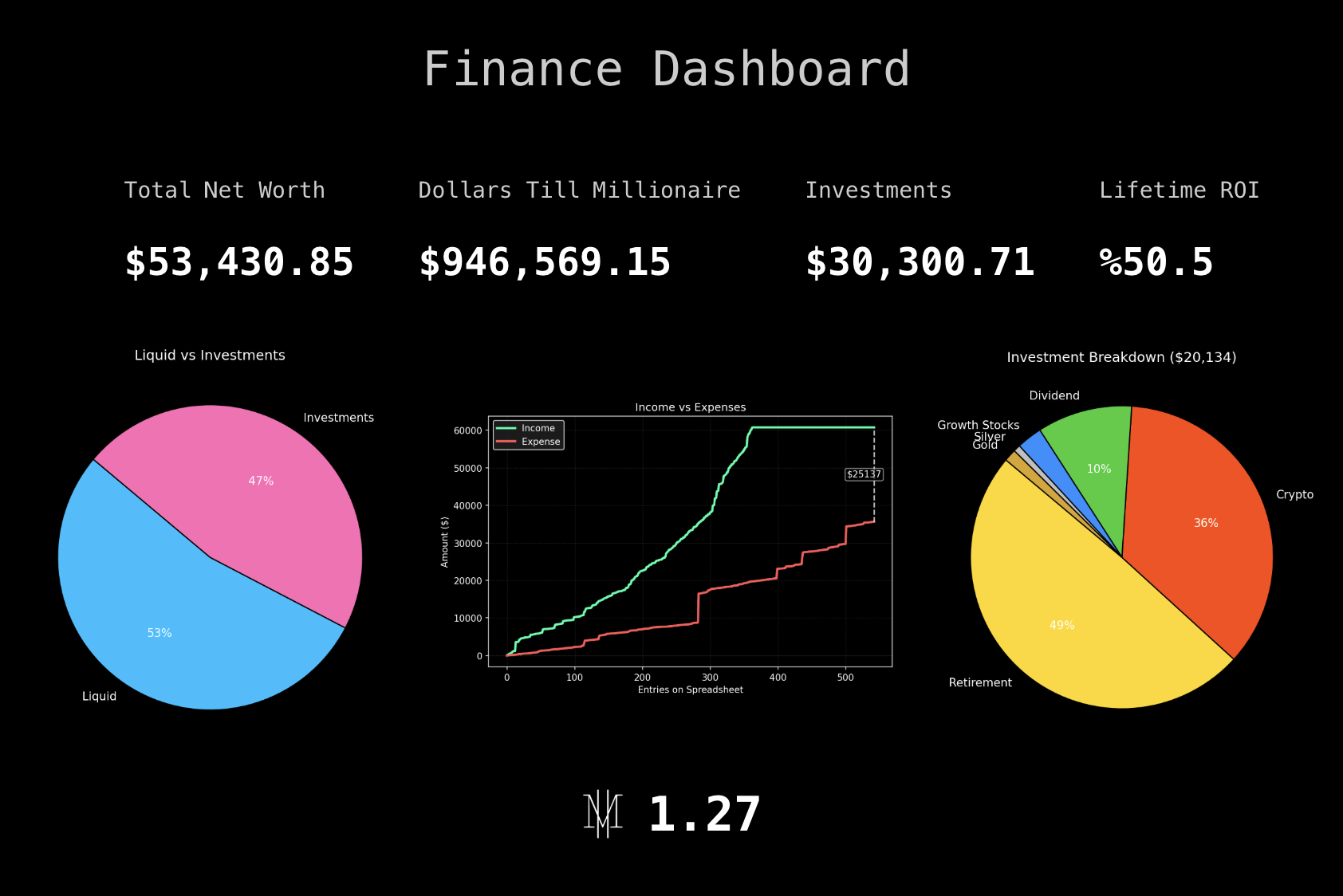

Finance Dashboard
A personal project using python, web-based graphical user interface to report data about my current finances using a google sheet api.
Read More

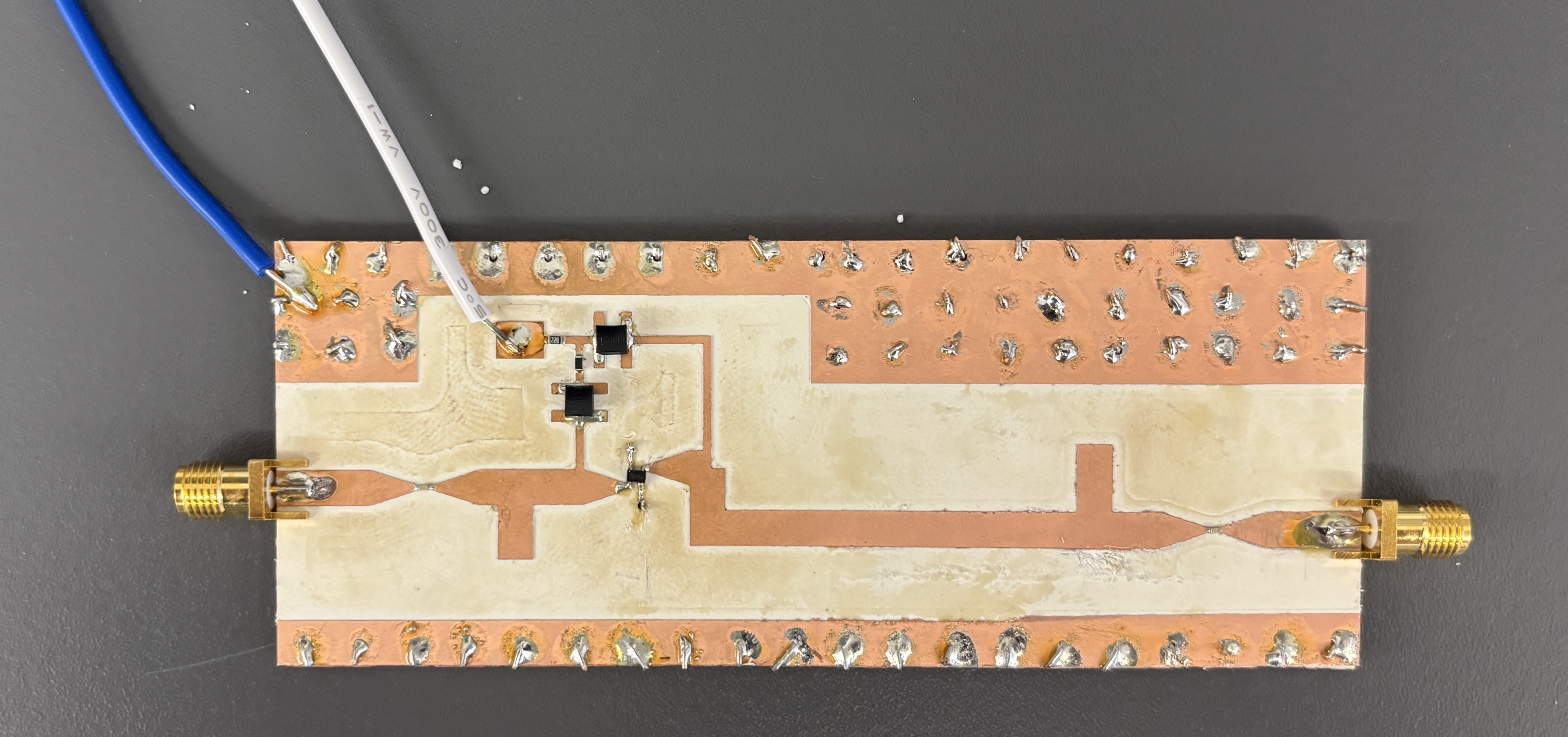

Low Noise Amplifier Design and Fabrication
For the final project in mirowave devices (EENG 529) I worked in a group to design a full-duplex RF frontend, my component was the low noise amplifier. The LNA was designed around the Infineon BFP650 bipolar transistor using a common emitter topology with a single voltage bias and a resistive current divider generating appopriate base current and collector emitter voltage for desired class A operation. The simulation was performed in Keysight ADS and the amplifier was fabricated on a 60 mil 1oz copper Rogers RO3003C substrate. The amplifier was tested using a vector network analyzer and the measured gain and linearity figure were in good agreement with simulation.
Read More

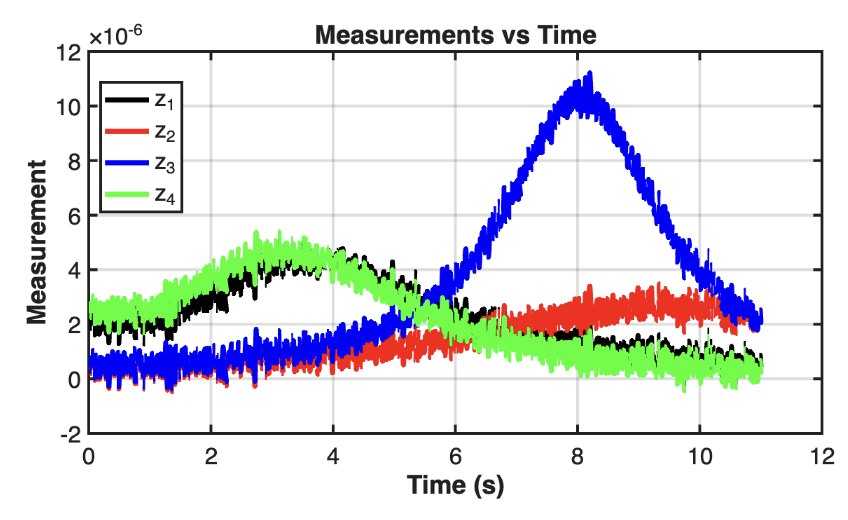

Kalman Filter Implementation
To create accurate estimates of the internal states of a non-linear, two-wheeled robot driving on a perforated surface with deterministic inputs and noisy measurements from RF sensors, an extended Kalman filter and Monte Carlo Kalman filter were in MATLAB and Simulink.
Read More

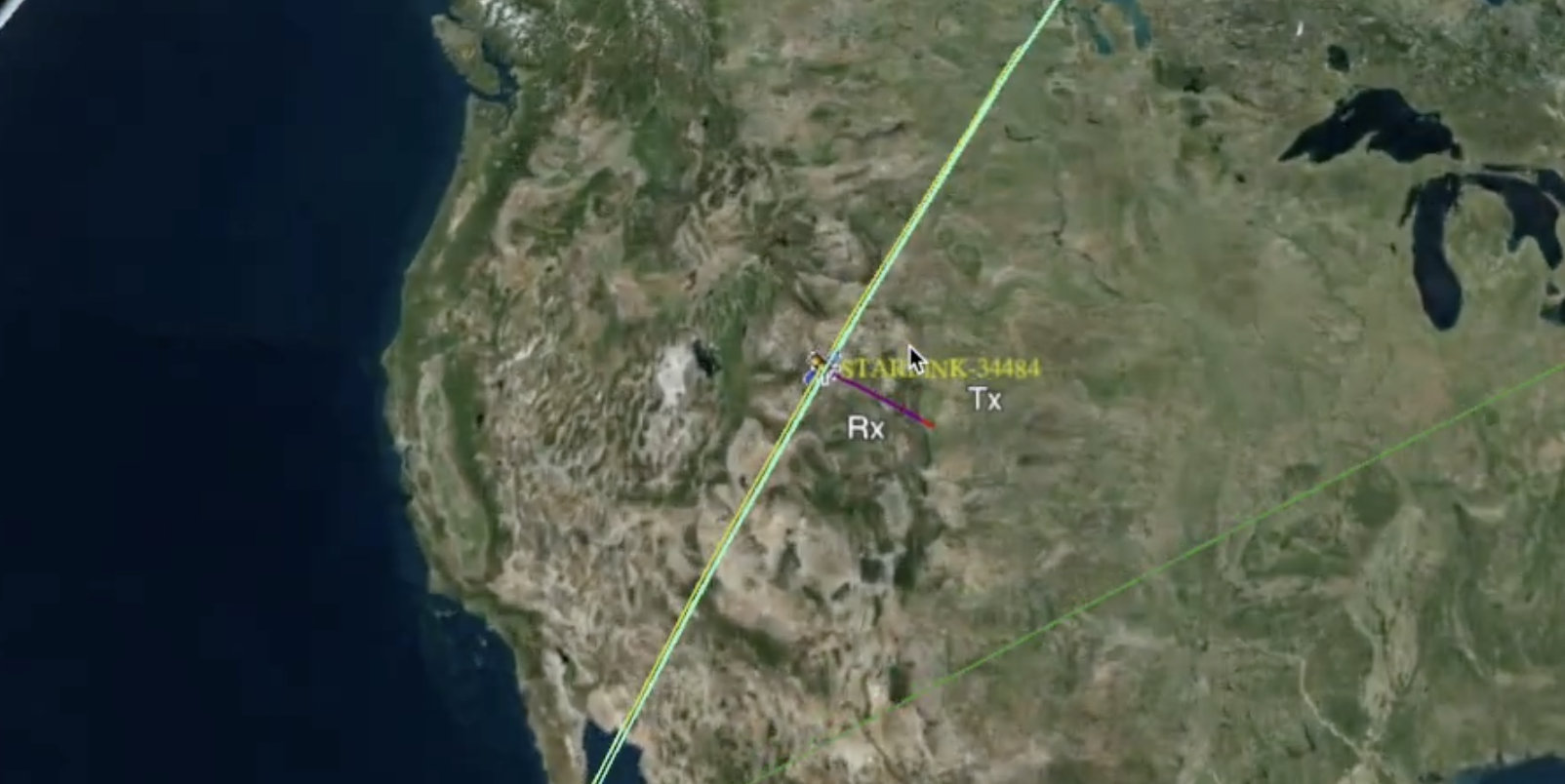

Bent Pipe Communication System
During my summer internship at Rincon Research Coorporation, I worked on a project with 4 other interns to simulate, and implement a small scale demonstration of a bent pipe communicaiton system. My specific tasks involved creating a simulation of the system using a Python web-based graphical user interface and CesiumJS. The simulation involved scraping publicly available information of recent low Earth orbit (LEO) satellite launches and propagrating TLE data for a dynamic visualization of ideal link opportunities between two ground stations and the LEO satellites. The Doppler shift, noise floor, and path loss were calculated for each link opportunity to inform a channel model and a random phase rotation was applied. Signal allignment and demodulation was performed to extract a message from the received signal.
Read More
Stegonagraphy in C++
Embedded messages into pixels of an image using a C++ program. The program ecodes on red blue or green color channel and the intensity of each pixel is used to encode 8 bits of data. The program can also decode the message from the image.
Read More

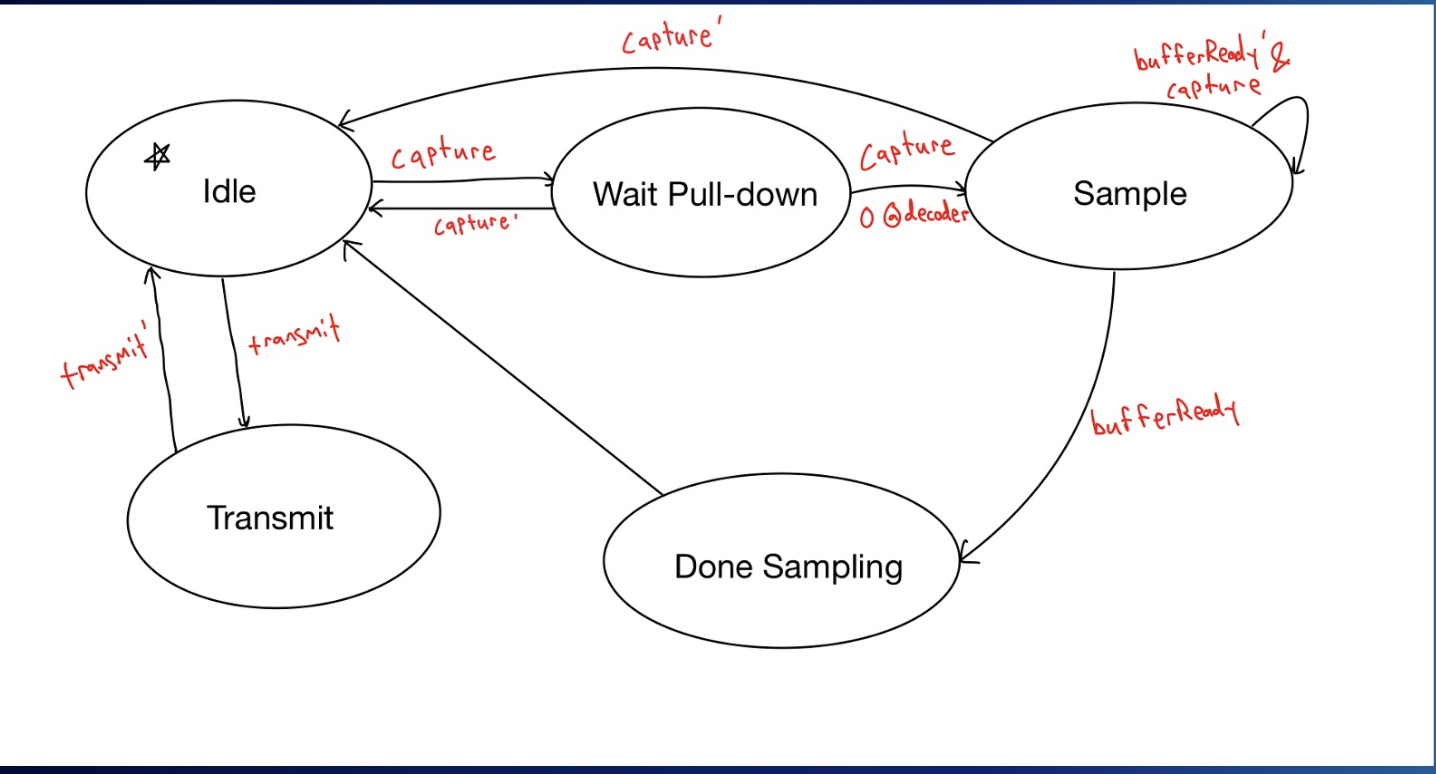

Infrared Eavesdropping
Collaborated with Blane Miller and Cooper Hammond on an embedded systems project exposing vulnerabilities in infrared (IR) communication and proposing a secure alternative. This multidisciplinary project involved designing software, implementing signal processing techniques, and addressing security challenges in communication protocols.
Read More

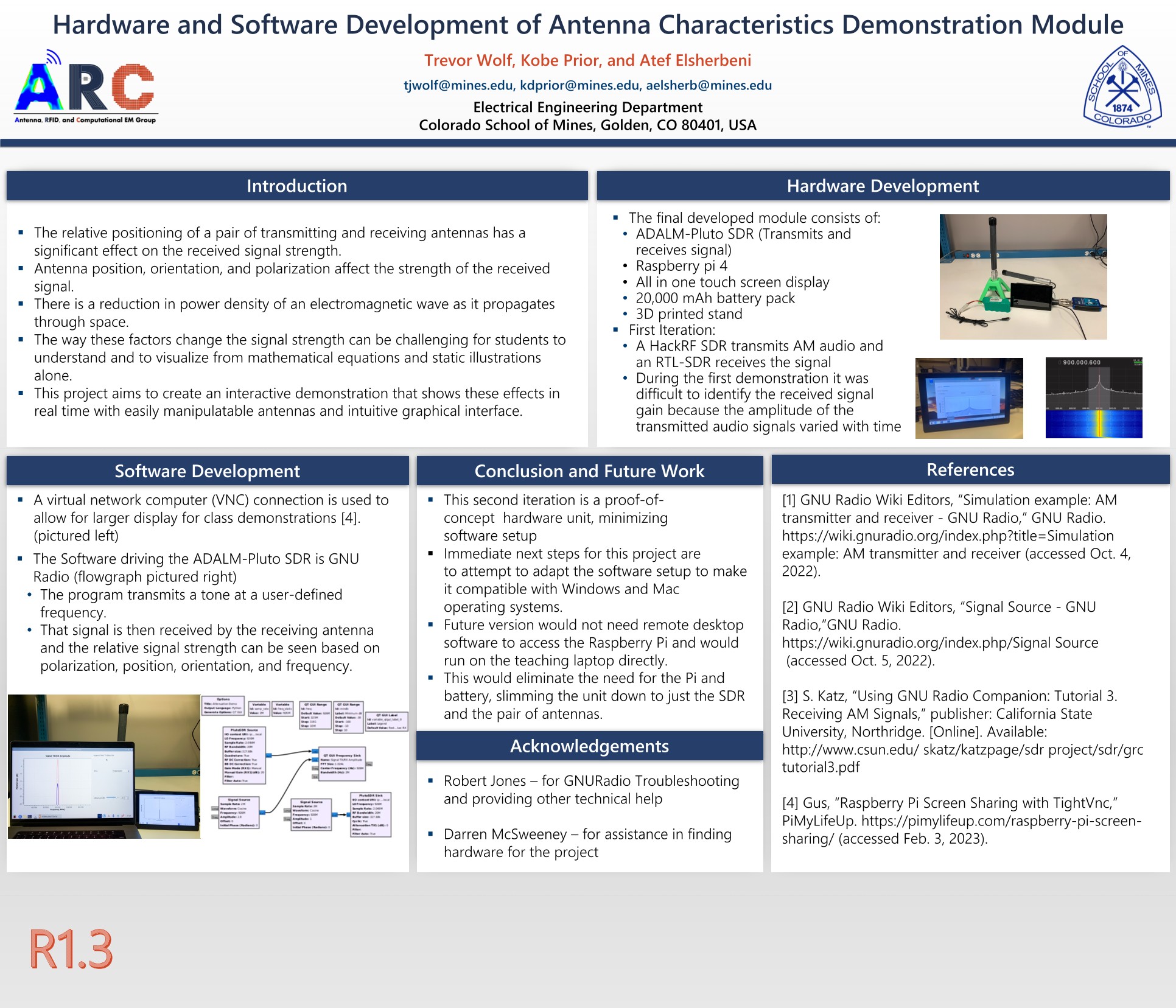

Antenna Demonstration Module
For my first semester involved in undergraduate research I worked on the hardware and software for a antenna demonstration module that transmitted with one antenna and reported the relative gain at the second antenna. This allowed for the dynamic demonstration of antenna propagation phenomenon like free space path loss and polarization loss. The module used an all in one touch screen raspberry pi and an ADALM PLUTO software defined radio driven by GNU radio.
Read More

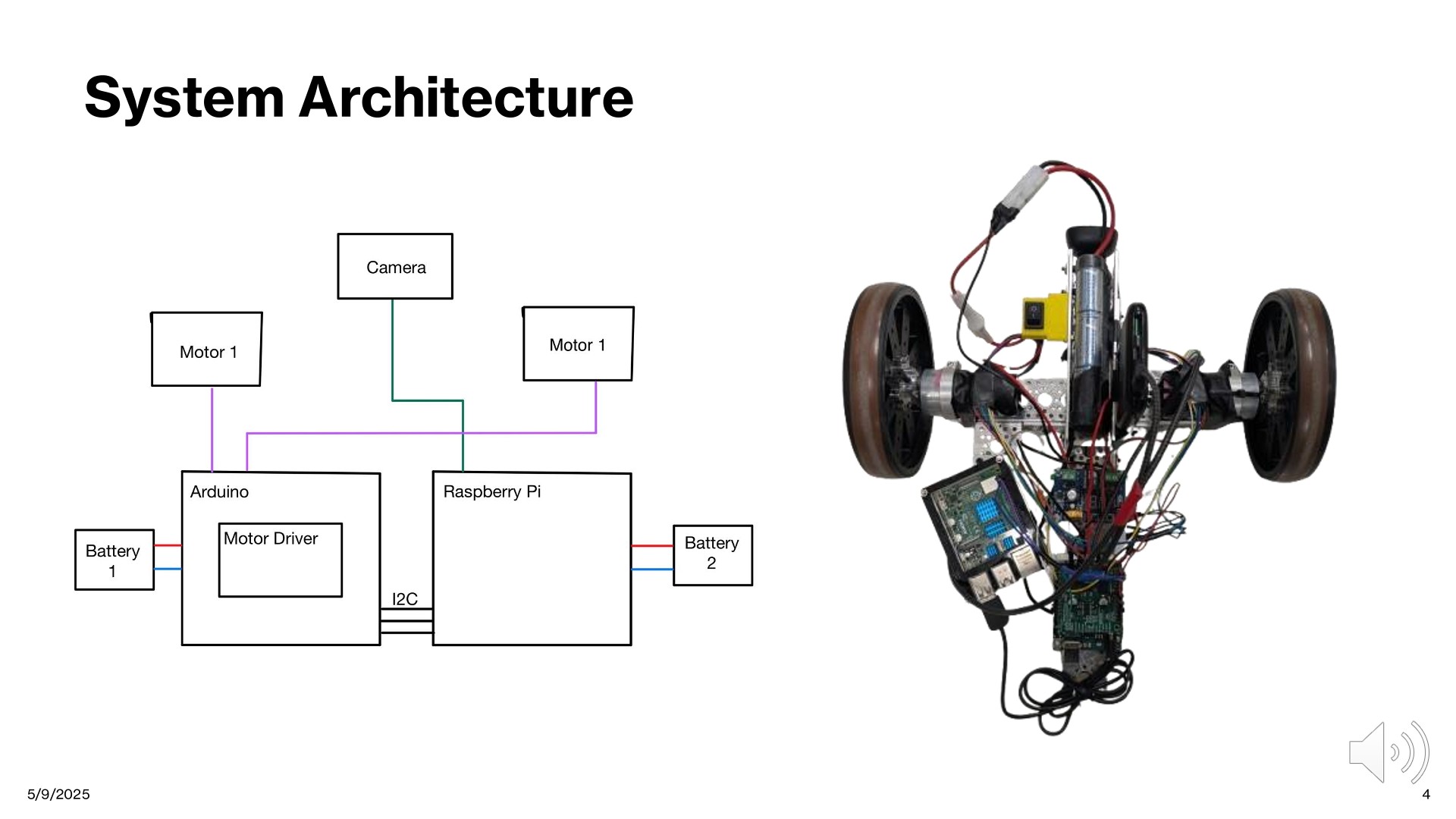

SEED Lab Autonomous Robot
For a course designed to expose electrical engineering stduetns to the design process, myself and 3 other students designed a built an autonomoous robot that navigated a course using aruco markers with different colored arrows to indicate the direction the robot should turn. The robot was built using an arduino microcontroller, a motor driver, and a camera for computer vision.
Read More
